SKU: MASTERYS IP+

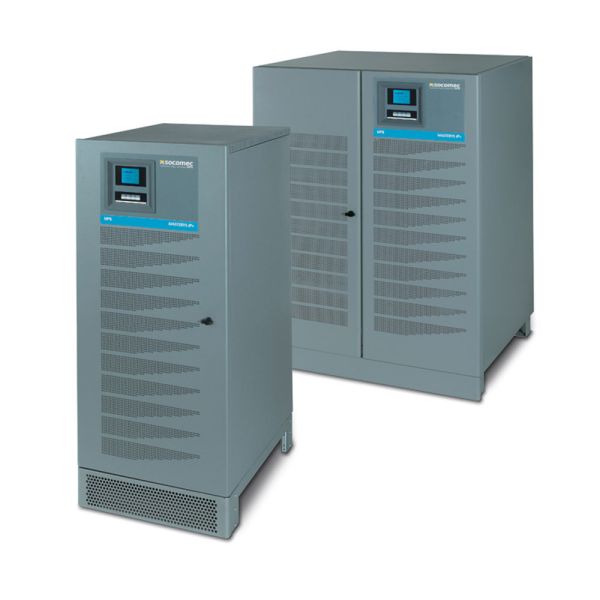

Socomec MASTERYS IP+ 10-80kVA Online UPS Series

SKU: MASTERYS IP+

kVA: 10-80kVA

  • Power range: 10-80 kVA
  • Online double-conversion topology
  • Input/Output 3:1 (10-60 kVA) / 3:3 (10-80 kVA)
  • 100% non-linear loads, unbalanced loads & 6-pulse loads
  • Dual input mains
  • Internal maintenance bypass
  • Backfeed protection: detection circuit
  • EBS (Expert Battery System) for battery management
  • Optional battery cabinets to meet all backup time requirements
  • Multilanguage graphic display
  • MODBUS RTU
  • Dry-contact interface (configurable voltage-free contacts)
  • Ethernet interface for UPS monitoring via WEB pages
  • 3.5" multilanguage graphic display
  • Electrical options: Long-life batteries, external battery cabinet (degree of protection up to IP32), external temperature sensor, additional battery chargers, additional transformer, parallel kit, cold start, ACS synchronization system, neutral creation kit for mains without neutral, tropicalization and anti-corrosion protection for electrical boards
  • Communication options: 2 slots for communication options, MODBUS RTU RS485 or MODBUS TCP, PROFIBUS gateway, BACnet/IP interface, NET VISION: professional WEB/SNMP Ethernet interface, REMOTE VIEW PRO supervision software, IoT gateway for Socomec cloud services and SOLIVE UPS mobile app
  • 3-year warranty (equipment only)
  • Images for illustrative purposes only

REQUEST FURTHER DETAILS

MASTERYS IP+ is specially designed to power and protect typical industrial equipment such as motors, motor speed drivers, lamps, non-linear loads, welding equipment, and power supplies. It is also capable of supplying control equipment such as programmable controllers, sensors, and measurement devices, and it integrates seamlessly into the most demanding industrial environments.

MASTERYS IP+ is a compact solution with an isolation transformer and integrated batteries, making it ideal for protecting industrial processes. It has a rugged enclosure (2 mm thick heavy steel frame), floor anchoring (to avoid tilting), and a dust and water-splash-resistant enclosure (IP52) with easily changeable dust filters. The UPS can work at temperatures as high as 50 °C and has a wide input voltage tolerance of -40 % to +20 % of normal voltage, double the EMC immunity of the UPS international standard IEC 62040-2, and double overvoltage protection.

The IGBT rectifier makes integration into industrial networks simple due to a power factor of up to 0.90 and an input current harmonic distortion of less than 3%. MASTERYS IP+ is compatible with nickel-cadmium, Valve Regulated Lead Acid (VRLA), and Open Vented Lead Acid (OVLA) batteries. The series has an easy-to-use, multilingual interface with a graphical display and flexible communication boards that can be used for all types of industrial communication, such as dry contacts, MODBUS, and PROFIBUS, among others.

For process continuity, front access permits input and output cabling, replacement of spare parts, and preventive maintenance. With the ability to parallel up to 6 units, power is scalable, and availability is good (through redundancy).

Manufacturer: Socomec
Color: Grey
Topology: Online Double-Conversion
VA: 10000-80000
