SKU: MASTERYS BC+ FLEX

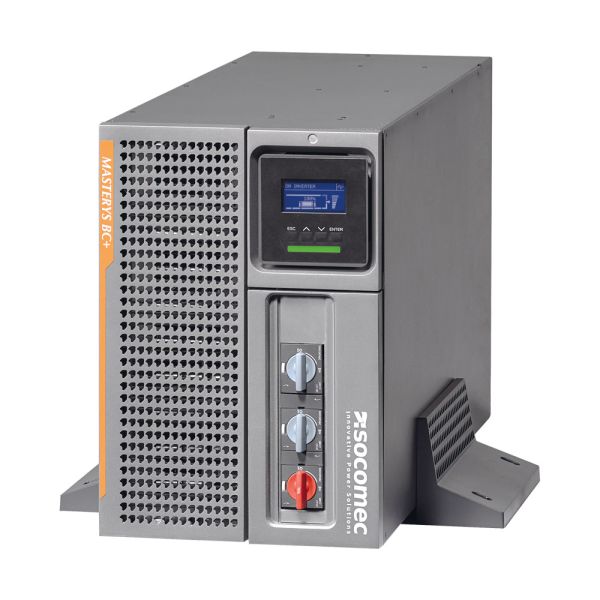

Socomec MASTERYS BC+ FLEX 10-40kVA Online UPS Series

SKU: MASTERYS BC+ FLEX

kVA: 10-40kVA

Watts: 36000

  • Power range: 10-40 kVA
  • Online double-conversion topology
  • Input/Output 3:1 (10-20 kVA) / 3:3 (10-40 kVA)
  • Dual input mains (30-40 kVA)
  • Internal maintenance bypass switch
  • Output switch breaker
  • Auxiliary mains switch breaker
  • Backfeed protection: detection circuit
  • Full compatibility with generators
  • Optional hot-swappable battery cabinets to meet all backup time requirements, even after installation
  • Parallel configuration up to 6 units
  • 3.5" multilanguage graphic display
  • 2 slots for communication options
  • USB port for downloading log file & Ethernet port for service purposes
  • System options: 3-phase input without neutral, internal backfeed isolation device, common mains coupling bars, TN-C grounding system, ACS synchronisation system, high-capacity battery charger, free-standing kit, top-mounted kit
  • Communication options: Dry-contact interface, MODBUS RTU RS485 or TCP, PROFIBUS / PROFINET gateway, BACnet/IP interface, NET VISION SNMP interface, REMOTE VIEW PRO supervision software, IoT gateway for Socomec cloud services & SoLive UPS mobile app, remote touch-screen panel
  • 3-year warranty (equipment only)
  • Images for illustrative purposes only

REQUEST FURTHER DETAILS

The MASTERYS BC+ FLEX UPS series from Socomec is a space and installation restrictions-free, cost-effective 3-in-1 solution. Installation is quick and simple thanks to retrofit configurations in existing installations, the free eRULER online sizing tool for obtaining dimensions and electrical information prior to installation, and online product documentation accessed by just entering the serial number. This solution is ideal for SME IT networking, computer rooms, building automation, payment systems, the public sector and security control.

In standard mode, MASTERYS BC+ FLEX is equipped with an output and a manual bypass breaker. The panel can be adjusted to make the displayed information easier to read. A charging current choice with a very lengthy backup duration. It is also user and environmentally friendly, with more than 25 languages available on the mimic panel, an ergonomic design that simplifies usage, expected eco-regulations, and RoHS compliance.

MASTERYS BC+ FLEX gives ultimate adaptability. The UPS can be freestanding and adapted to the available area, wall-mounted to take up no floor space, or top-mounted for a simple built-in option.

Manufacturer: Socomec
Color: Grey
Topology: Online Double-Conversion
VA: 10000-40000
Watt: 36000
