SKU: DELPHYS MX

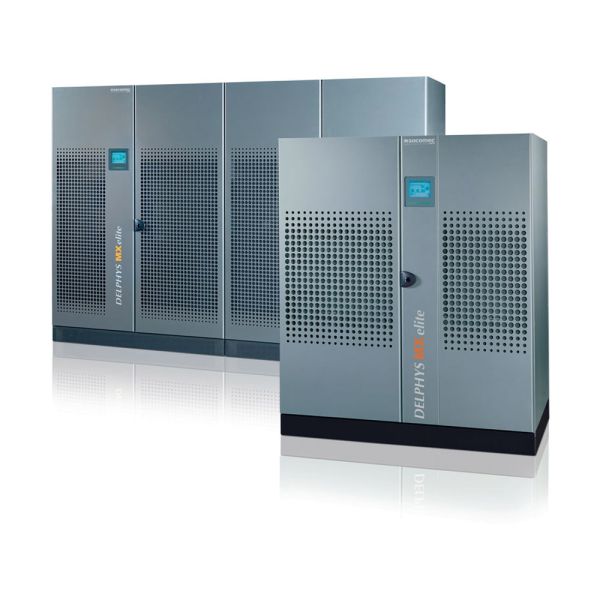

Socomec DELPHYS MX 250-900kVA Online UPS Series

SKU: DELPHYS MX

kVA: 250-900kVA

  • Power range: 200-900 kVA
  • Online double-conversion topology
  • Backfeed protection: detection circuit
  • Standard interface: 3 inputs (emergency stop, generating set, battery protection), 4 outputs (general alarm, back-up, bypass, preventative maintenance needs)
  • Distributed or centralized bypass for parallel architecture up to 6 units
  • Redundant systems ("1+1" & "n+1")
  • "2n" architecture with Static Transfer Systems
  • Electrical options: EBS (Expert Battery System), ACS synchronisation system for 2n architecture, redundant electronic power supplies, hot plug option (increase the power keeping the load supplied in double conversion)
  • Mechanical options: Reinforced IP protection up to IP52, dust filters, fan redundancy with failure detection, top entry connection
  • Communication options: User-friendly touch-screen multilingual color graphic display, dry-contact interface (configurable voltage-free contacts), MODBUS RTU RS485 or MODBUS TCP, PROFIBUS / PROFINET gateway, BACnet/IP interface, NET VISION: professional WEB/SNMP Ethernet interface for secure UPS monitoring & remote automatic shutdown, REMOTE VIEW PRO supervision software, IoT gateway for Socomec cloud services & SoLive UPS mobile app, additional Com-slot extension
  • Images for illustrative purposes only

REQUEST FURTHER DETAILS

The DELPHYS MX UPS from Socomec is a flexible transformer-based solution for resilient architectures from 250 to 900 kVA. Online double-conversion technology generates a high-quality power supply with continuous operation and accurate output voltage in all load conditions. This solution is suitable for industrial, process, infrastructure, IT, and healthcare applications.

The inverter isolation transformer provides optimal protection for the load. There is a galvanic separation between the DC current and the load, as well as between the two sources. Thanks to pull-out subassemblies and front access to all components, MTTR is reduced, and the architecture is fault-tolerant due to redundant components.

The paralleling mode is robust and reliable, the distributed or centralised bypass ensures perfect compatibility with any electrical infrastructure, the hot-plug capability simplifies extension or redundancy while maintaining power quality, and the transformer-based topology is adapted to all types of electrical installations.

The total cost of ownership (TCO) is reduced as a result of the high power density and small footprint that conserve space on your property. A high and steady input power factor helps restrict upstream dimensions. In network infrastructure, the mains connection of the rectifier only needs three cables (there is no neutral), and the high short-circuit capacity of the rectifier makes protection devices further down the line easier to use.

Manufacturer: Socomec
Color: Grey
Topology: Online Double-Conversion
VA: 250000-900000
