SKU: DELPHYS MP Elite+

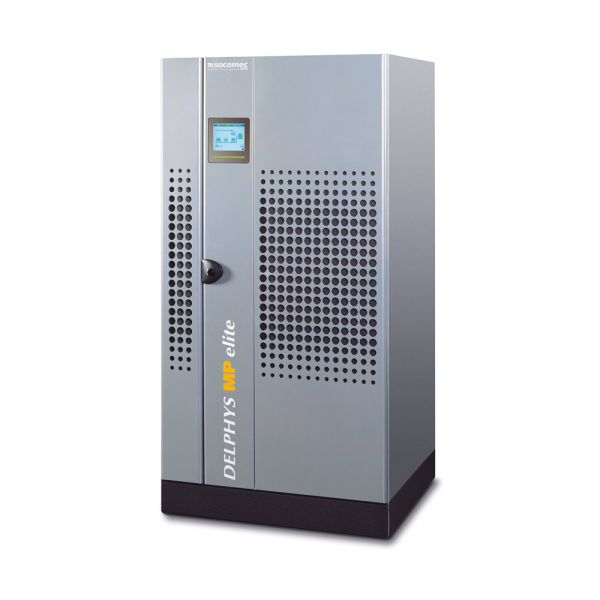

Socomec DELPHYS MP Elite+ 80-200kVA Online UPS Series

SKU: DELPHYS MP Elite+

kVA: 80-200kVA

Watts: 180000

  • Power range: 80-200 kVA
  • Online double-conversion topology
  • Backfeed protection: detection circuit
  • Standard interface:
    • 3 inputs (emergency stop, generating set, battery protection)
    • 4 outputs (general alarm, back-up, bypass, preventative maintenance needs).
  • Distributed or centralized bypass for parallel architecture up to 6 units.
  • Redundant systems ("1+1" & "n+1")
  • "2n" architecture with Static Transfer Systems
  • Dry-contact interface (configurable voltage-free contacts)
  • 3 slots for communication options
  • Electrical options: EBS (Expert Battery System), ACS synchronisation system for 2n architecture, redundant electronic power supplies, hot plug option (increase the power keeping the load supplied in double conversion), long back up time rectifier
  • Communication options: User-friendly touch-screen multilingual color graphic display, MODBUS RTU RS485 or TCP, PROFIBUS / PROFINET gateway, BACnet/IP interface, NET VISION SNMP interface, REMOTE VIEW PRO supervision software, IoT gateway for Socomec cloud services & SoLive UPS mobile app, additional Com-slot extension
  • Mechanical option: Reinforced IP protection degree, dust filters, fan redundancy with failure detection, top entry connection, reinforced IP protection up to IP52
  • Images for illustrative purposes only

REQUEST FURTHER DETAILS

The DELPHYS MP Elite+ UPS series from Socomec provides 80 to 200 kVA of transformer-based power protection. Online double-conversion technology produces a high-quality power supply with continuous operation and precise output voltage under all load situations. This solution is suited for applications in industry, processes, infrastructure, healthcare, the service sector, and telecommunications.

A very high short-circuit current capacity allows the selection of protection devices for downstream distribution selectivity. Installing an isolation transformer on the inverter output ensures complete galvanic isolation between the DC circuit and the load output. This insulation also separates the two inputs when they come from distinct sources. ThdU output voltage is 2% for linear loads and 4% for nonlinear loads.

DELPHYS MP Elite+'s field-proven technology ensures maximum availability. With the redundancy of fundamental functions, such as the ventilation system, the architecture is fault-tolerant. As a result of pull-out subassemblies and front access to all components, MTTR is decreased. Accurate diagnostics ensure that the load receives power, and parallel systems prevent cascade failure. Mechanically and electrically robust, DELPHYS MP Elite+ is suitable for industrial situations. The IGBT inverter's soft start capability (ramp-up) enables good operation with a generator. The series is adaptable to a variety of industrial applications, with options for high IP protection, high peak current capacity, and lengthy backup times.

The equipment of the DELPHYS MP Elite+ series is cost-effective, and the "clean" GBT rectifier allows for great efficiency, a high and consistent input power factor, and a low THDi. These attributes aid in limiting the size of the upstream network infrastructure. It is possible to establish a new neutral system without incurring further losses (an extra transformer is required on the bypass line only). A high short-circuit capability simplifies downstream protection devices, while a high power density and compact footprint conserve space within your facility. The mains connection of the rectifier requires only three wires (no neutral), and the battery connection to the UPS requires only two.

Manufacturer: Socomec
Color: Grey
Topology: Online Double-Conversion
VA: 80000-200000
Watt: 180000

All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times.

Secure Power offers a comprehensive range of UPS maintenance services and our team of nationwide engineers are available 24/7, 365 days a year to carry out all routine and emergency works. We have a range of standard UPS maintenance contract packages and also provide tailored solutions to fit any requirement.

Below is a snapshot of what our contracts offer.

Service Bronze Silver Gold Platinum
Response time Next Business Day Next Business Day 8hrs 4hrs
Discounted travel and labour costs N/A N/A N/A
24/7 Technical support
1 preventative maintenance visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Priority parts - -
Access to UK wide spares network - -
Response Time Next business day
Discounted travel & labour costs
24/7 Technical support
1 preventative visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Priority parts -
Access to UK wide spares network -
Response Time Next business day
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts -
Access to UK wide spares network -
Response Time 8hrs
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts
Access to UK wide spares network
Response Time 4hrs
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts
Access to UK wide spares network
VIEW MAINTENANCE
