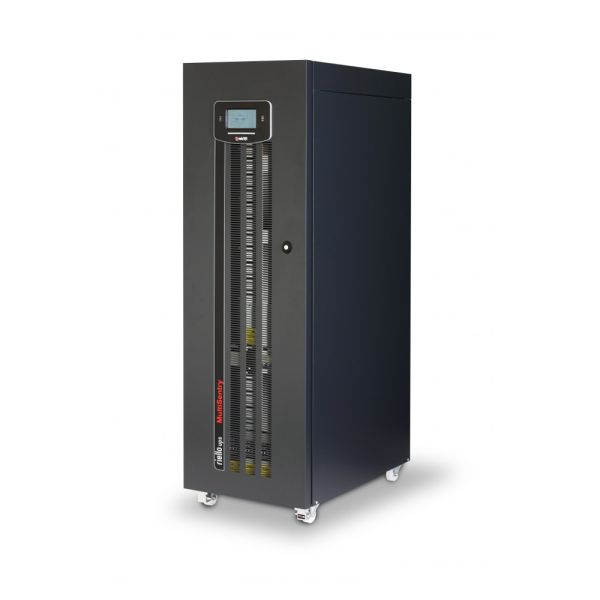

Riello Multi Sentry (MST 80) 80kVA Online UPS
The Multi Sentry (MST) series is ideal for safeguarding data centres, telecommunications systems, IT networks, and critical systems in general, where the risks of insufficient energy supply can jeopardise operations. This UPS has a three-phase input and output, as well as online...
- Ideal for areas with limited space due to compact footprint
- Zero impact on the power source
- Parallel up to 8 UPS for redundancy
- 96.5% online efficiency decreases energy waste
- Optional battery extension packs extend runtime
- Ideal for Blade servers with its ability to handle non-linear loads
- Suitable for locations with low power capacity or harmonic difficulties
- USB / RS232 / 3 x slot for communications interface
- 3-year warranty
The Multi Sentry (MST) series is ideal for safeguarding data centres, telecommunications systems, IT networks, and critical systems in general, where the risks of insufficient energy supply can jeopardise operations. This UPS has a three-phase input and output, as well as online double-conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3).
The MST is designed and built with cutting-edge materials and technology. It is fitted with a fully-controlled IGBT rectifier to minimise its grid impact. It is controlled by a DSP (Digital Signal Processor) microprocessor, which makes sure that the power loads get the best protection while having the least effect on other systems and saving the most energy.
Multi Sentry eliminates installation problems in systems where the power supply is limited, the UPS is powered by a generator, or loads that generate harmonic currents are incompatible. It has no impact on its power source, whether it's a generator or the mains.
Please Note: All images are for illustrative purposes only
|Input Frequency||50/60 Hz autoselect|
|Output Frequency||50/60Hz +/–0.1 % (autosensing)|
|Communications Ports||UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays|
|Operating Temperature||0 to 40°C|
|Certification||IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU|
All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times. Secure Power offers a comprehensive range of UPS maintenance services and our team of nationwide engineers are available 24/7, 365 days a year to carry out all routine and emergency works. We have a range of standard UPS maintenance contract packages and also provide tailored solutions to fit any requirement. Below is a snapshot of what our contracts offer.
|Response Time||Next Business Day||Next Business Day||8hrs||4hrs|
|Discounted travel and labour costs||N/A||N/A||N/A|
|24/7 Technical support|
|Temporary UPS in the event of a failure (up to 10kVA single phase)|
|1 preventative maintenance visit per year||-|
|Travel & Labour costs for reactive maintenance||-|
|Professional service report||-|
|Emergency callout number||-|
|Access to UK wide spares network||-||-|
