SKU:
MST 160

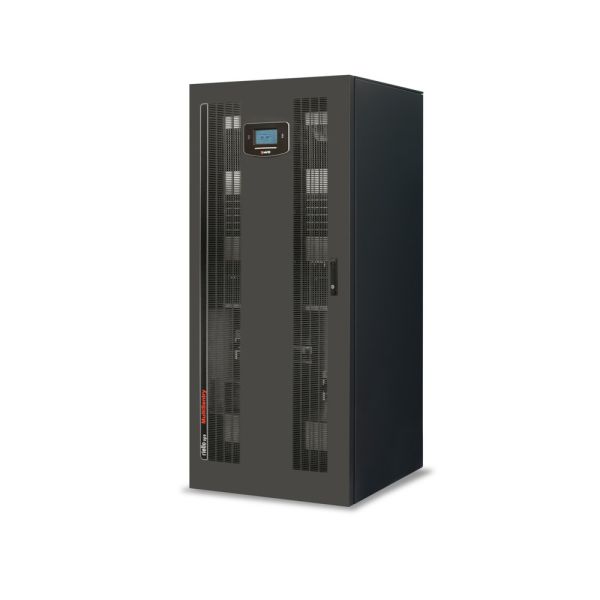

Riello Multi Sentry (MST 160) 160kVA Online UPS

Key Features

kVA: 160kVA

Watts: 160000

Product Description

The Multi Sentry (MST) series is ideal for safeguarding data centres, telecommunications systems, IT networks, and critical systems in general, where the risks of insufficient energy supply can jeopardise operations. This UPS has a three-phase input and output, as well as online...

Read More
  • Unity Power factor 1 kW = kVA
  • Ideal for areas with limited space due to compact footprint
  • Zero impact on the power source
  • Parallel up to 8 UPS for redundancy
  • 96.5% online efficiency decreases energy waste
  • Optional battery extension packs extend runtime
  • Ideal for Blade servers with its ability to handle non-linear loads
  • Suitable for locations with low power capacity or harmonic difficulties
  • USB / RS232 / 3 x slot for communications interface
  • 3-year warranty
QUICK QUOTE REQUEST

The Multi Sentry (MST) series is ideal for safeguarding data centres, telecommunications systems, IT networks, and critical systems in general, where the risks of insufficient energy supply can jeopardise operations. This UPS has a three-phase input and output, as well as online double-conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3).

The MST is designed and built with cutting-edge materials and technology. It is fitted with a fully-controlled IGBT rectifier to minimise its grid impact. It is controlled by a DSP (Digital Signal Processor) microprocessor, which makes sure that the power loads get the best protection while having the least effect on other systems and saving the most energy.

Multi Sentry eliminates installation problems in systems where the power supply is limited, the UPS is powered by a generator, or loads that generate harmonic currents are incompatible. It has no impact on its power source, whether it's a generator or the mains.

Please Note: All images are for illustrative purposes only

Manufacturer Riello
Topology Online Double-Conversion
VA 160000
Watt 160000
Output Voltage 380-415V
Input Frequency 50/60 Hz autoselect
Output Frequency 50/60Hz +/–0.1 % (autosensing)
Communications Ports UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
Operating Temperature 0 to 40°C
Certification IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU
