SKU: MST 100ER

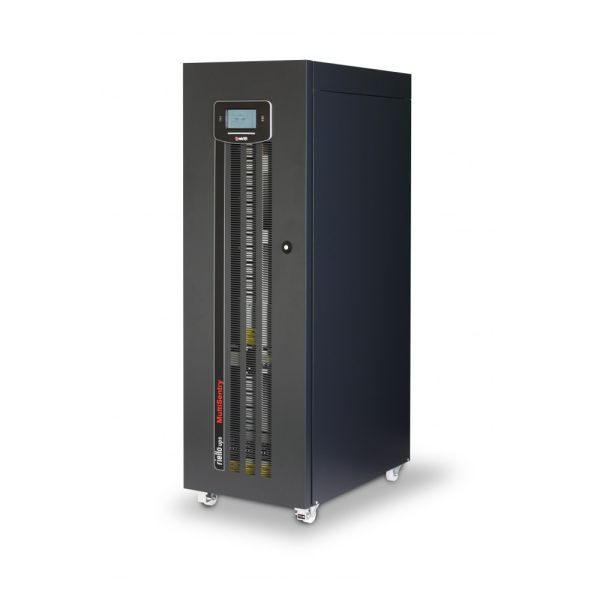

Riello Multi Sentry (MST 100ER) 100kVA Online UPS with 20A Charger
SKU: MST 100ER
kVA: 100kVA
Watts: 90000
The Multi Sentry (MST) series is ideal for safeguarding data centres, telecommunications systems, IT networks, and critical systems in general, where the risks of insufficient energy supply can jeopardise operations. This UPS has a three-phase input and output, as well as online double-conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3). The MST is designed and built with cutting-edge materials and technology. It is fitted with a fully-controlled IGBT rectifier to minimise its grid impact. It is controlled by a DSP (Digital Signal Processor) microprocessor, which makes sure that the power loads get the best protection while having the least effect on other systems and saving the most energy. Multi Sentry eliminates installation problems in systems where the power supply is limited, the UPS is powered by a generator, or loads that generate harmonic currents are incompatible. It has no impact on its power source, whether it's a generator or the mains. Please Note: All images are for illustrative purposes only
| Manufacturer: | Riello |
| Topology: | Online Double-Conversion |
| VA: | 100000 |
| Watt: | 90000 |
| Output Voltage: | 380-415V |
| Input Frequency: | 50/60 Hz autoselect |
| Output Frequency: | 50/60Hz +/–0.1 % (autosensing) |
| Communications Ports: | UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays |
| Operating Temperature: | 0 to 40°C |
| Certification: | IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU |
Multi Sentry Brochure & Datasheet
60-200kVA
