SKU: E3SUPS20K3I

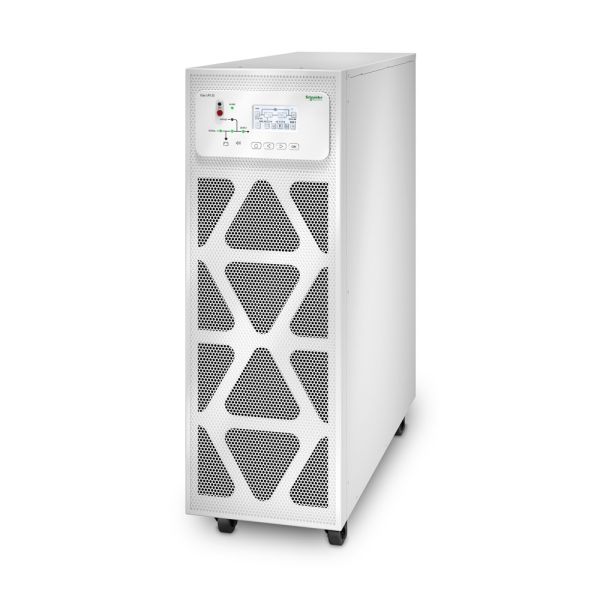

Schneider Electric Easy UPS 3S (E3SUPS20K3I) 20 kVA 400V 3:1 UPS

SKU: E3SUPS20K3I

kVA: 20kVA

Watts: 20000

  • UPS for external batteries
  • Double-conversion online topology
  • Straightforward installation
  • ECO Mode
  • Intuitive user interface
  • Front-access servicing
  • Easy Loop Test
  • Wide Input Voltage Window
  • Replaceable dust filters
  • Parallel capability
  • Optional SNMP Card
  • Includes: Dust filter, Installation guide

Call Us: 0800 080 3118 REQUEST FURTHER DETAILS

The Easy UPS 3S series from Schneider Electric is a 3 phase UPS that is easy to install, easy to use, and easy to service for small to medium data centres and other mission-critical applications.

To ensure business continuity, the Easy UPS 3S provides power stability with rigorous electrical requirements and long-lasting performance. This EcoStruxure-connected UPS is designed for quick and simple installation in the data centre or electrical room. It boasts a broad working temperature window and robust overload protection, all while maintaining a compact and lightweight footprint. Schneider Electric suggests purchasing Start-Up Service to maximise the performance, quality, and safety of your system.

Manufacturer: Schneider Electric
Color: White
Topology: Online Double-Conversion
VA: 20000
Watt: 20000
Output Voltage: 380-415V
Input Frequency: 45–55Hz (50Hz system), 55–65Hz (60Hz system)
Output Frequency: 50/60Hz +/–0.1 % (autosensing)
Communications Ports: E3S_Parallel + E3S_TempSensor
Operating Temperature: 0 to 40°C
Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE, CSA 22.2, IEC/EN 62040-3, EAC, RCM, WEEE Compliant

All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times.

Secure Power offers a comprehensive range of UPS maintenance services and our team of nationwide engineers are available 24/7, 365 days a year to carry out all routine and emergency works. We have a range of standard UPS maintenance contract packages and also provide tailored solutions to fit any requirement.

Below is a snapshot of what our contracts offer.

Service Bronze Silver Gold Platinum
Response time Next Business Day Next Business Day 8hrs 4hrs
Discounted travel and labour costs N/A N/A N/A
24/7 Technical support
1 preventative maintenance visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Priority parts - -
Access to UK wide spares network - -
Response Time Next business day
Discounted travel & labour costs
24/7 Technical support
1 preventative visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Priority parts -
Access to UK wide spares network -
Response Time Next business day
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts -
Access to UK wide spares network -
Response Time 8hrs
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts
Access to UK wide spares network
Response Time 4hrs
Discounted travel & labour costs N/A
24/7 Technical support
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Priority parts
Access to UK wide spares network
VIEW MAINTENANCE

Delivering resilient power protection strategies

Secure Power offers one of the largest UPS (Uninterruptible Power Supply) solution portfolios in the country. As an authorised partner for global manufacturers including, APC, Schneider, Riello, Eaton, Socomec, Salicru and Vertiv, we have direct access to genuine UPS parts, enabling us to provide the very best industry lead times. Offering the best warranty and support plans on the market, our expertise extends far beyond physical backup power technologies, we are also recognised for our extensive service solutions, which include preventative UPS maintenance, battery backup services and comprehensive emergency power project solutions.

Our price promise

We are one of the most competitive backup power protection providers in the country and do our upmost to provide the best pricing and value for money to all our clients. Offering not only a first class service but our strong relationships with our manufacturing partners allow us to, in most cases, match and improve upon competitor pricing.

Get a quote

Approved reseller

We are approved resellers of all of the UPS brands we offer and take great pride in supporting our clients in integrating the best power protection solutions at the best price. Working closely with each manufacturing partner ensures that we are fully trained and have all the up-to-date technical knowledge to support our clients.

Our partners

We’ve got you covered

We provide custom backup power maintenance support plans to suit any requirement, whether it be a small UPS backing up a PC or multiple UPS systems supporting critical infrastructure. Our team of highly qualified emergency power specialists provide an extensive range of flexible preventative maintenance packages.

Maintenance Services
