SKU: DELPHYS EM

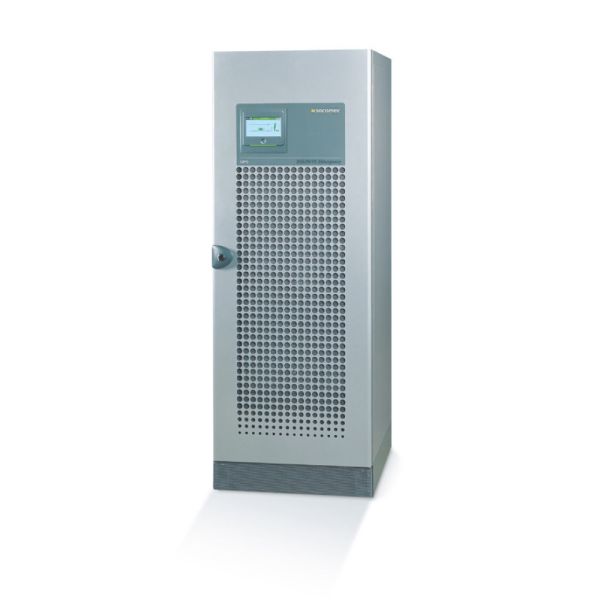

Socomec DELPHYS EM 160-200kVA Online UPS Series

SKU: DELPHYS EM

kVA: 160-200kVA

  • Power range: 10-160 kVA
  • Online double-conversion topology
  • Input/Output 3:1 (10-20 kVA) / 3:3 (10-160 kVA)
  • Dual input mains (above 30 kVA)
  • Internal maintenance bypass switch
  • Output switch breaker
  • Auxiliary mains switch breaker
  • Backfeed protection: detection circuit
  • Full compatibility with generators
  • Internal normal-life batteries up to 80 kVA
  • Optional hot-swappable battery cabinets to meet all backup time requirements, even after installation
  • 3.5" multilanguage graphic display
  • 2 slots for communication options
  • USB port for downloading log file & Ethernet port for service purposes
  • System options: 3-phase input without neutral, internal backfeed isolation device, common mains coupling bars, TN-C grounding system, ACS synchronisation system, P21 degree of protection, long-life internal batteries up to 80 kVA, high-capacity battery charger
  • Communication options: Dry-contact interface, MODBUS RTU RS485 or TCP, PROFIBUS gateway, BACnet/IP interface, NET VISION SNMP interface, REMOTE VIEW PRO supervision software, IoT gateway for Socomec cloud services & SoLive UPS mobile app, remote touch-screen panel
  • 3-year warranty (equipment only)
  • Images for illustrative purposes only

REQUEST FURTHER DETAILS

The EMergency CPSS (Emergency Central Power Supply System) product series has been created to meet your safety system's power supply requirements. All of Socomec's emergency products conform to European Standard EN 50171. DELPHYS EM is intended to ensure energy supply to emergency escape lighting in the event of mains supply failure. This series features online double-conversion technology that ensures high availability and comprehensive load protection.

The DELPHYS EM UPS series designed to protect airports, railways, bus stations, schools, universities, hospitals, shopping centres, cinemas, theatres, museums, public buildings, office buildings, and hotels. Depending on the local legislation, it may be suitable for energizing other essential safety equipment, such as electric circuits of automatic fire extinguishing installations, paging systems and signaling safety installations, smoke extraction equipment, carbon monoxide warning systems and special safety installations related to specific buildings, e.g. high-risk areas.

Manufacturer: Socomec
Color: Grey
Topology: Online Double-Conversion
VA: 160000-200000

All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times.
