SKU: SDU10000TM

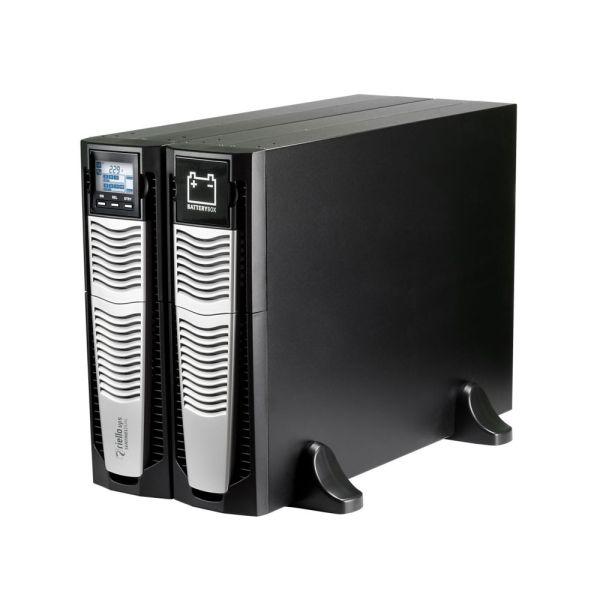

Riello Sentinel Dual (SDU 10000 TM) 10kVA Online UPS (3/1)

SKU: SDU10000TM

kVA: 10kVA

Watts: 10000

  • Three-phase input, single-phase output
  • Unity Power factor 1 kW = kVA
  • Versatile 6U rackmount or tower installation
  • Parallel up to 3 UPS for redundancy
  • 95% online efficiency decreases energy waste
  • Optional battery extension packs extend runtime
  • Edge applications benefit from the compact design
  • EnergyShare sockets prioritise critical loads
  • Rotating LCD display panel
  • Hot-swappable batteries
  • USB / DB9 with RS232 & contacts / Slot for communications interface
  • Input: Terminal block
  • Output: Terminal block, (2) IEC 320 C13, (3) IEC 320 C19
  • 3-year warranty

Call Us: 0800 080 3118 REQUEST FURTHER DETAILS

Sentinel Dual (SDU) is the ideal solution for mission-critical applications and medical electronics that need the most reliable power. The SDU line is perfect for a wide range of uses, from IT to security, because it is easy to set up and use (digital display, user-replaceable battery set) and has many ways to connect.

Up to three Sentinel Duals can be used simultaneously to provide greater dependability for important systems in either a capacity or N+1 redundant configuration. The Sentinel Dual is great for network and server rack applications. It can be put on the floor as a tower or mounted on a rack.

Online double conversion technology is used in the Sentinel Dual range. The inverter gives a sinusoidal voltage to the load that is filtered and stabilised in terms of voltage, form, and frequency. The input and output filters make the load much more resistant to things like power outages and lightning strikes.

For your peace of mind, Sentinel Dual (SDU) comes with a three-year manufacturer's guarantee.

Please Note: All images are for illustrative purposes only

Manufacturer: Riello
Color: Black
Topology: Online Double-Conversion
VA: 10000
Watt: 10000
C13: 2
Output Voltage: 220V/230V/240V
Input Frequency: 50/60 Hz autoselect
Output Frequency: 50/60Hz +/–0.1 % (autosensing)
Communications Ports: USB / DB9 with RS232 and contacts / Slot for communications interface
Operating Temperature: 0 to 40°C
Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE
