SKU: MHT600NBP

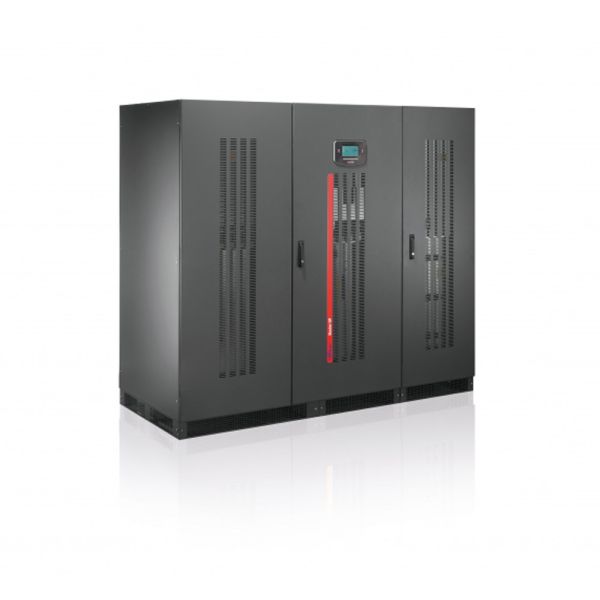

Riello Master HP (MHT 600 NBP) 600kVA Online UPS - No Static Bypass
SKU: MHT600NBP
kVA: 600kVA
Watts: 540000
Riello's Master HP (MHT) series is a three-phase UPS designed for applications that require great energy efficiency and power availability. Data centres and other mission-critical settings, such as industrial environments, telecommunications networks, and sensitive electro-medical devices, benefit from MHT's maximum protection and power quality. MHT allows for multi-megawatt deployments by allowing for up to eight (distributed parallel) or seven (centralised parallel) UPS systems. You can add UPS without transferring to bypass with Hot System Expansion. The UPS is equipped with an IGBT-based rectifier, DSP (Digital Signal Processor) technology, and true-line, double-conversion power protection (VFI SS 11 - Voltage and Frequency Independent in accordance with IEC EN 62040-3). The output isolation transformer in the MHT ensures complete galvanic isolation between the load and the DC battery power supply, and it delivers up to 95.5% efficiency in online mode, which is similar to many transformer-free solutions. Please Note: All images are for illustrative purposes only
| Manufacturer: | Riello |
| Color: | Anthracite |
| Topology: | Online Double-Conversion |
| VA: | 600000 |
| Watt: | 540000 |
| Output Voltage: | 380-415V |
| Input Frequency: | 50/60 Hz autoselect |
| Output Frequency: | 50/60Hz +/–0.1 % (autosensing) |
| Communications Ports: | UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays |
| Operating Temperature: | 0 to 40°C |
| Certification: | IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU |
