SKU: MHT200

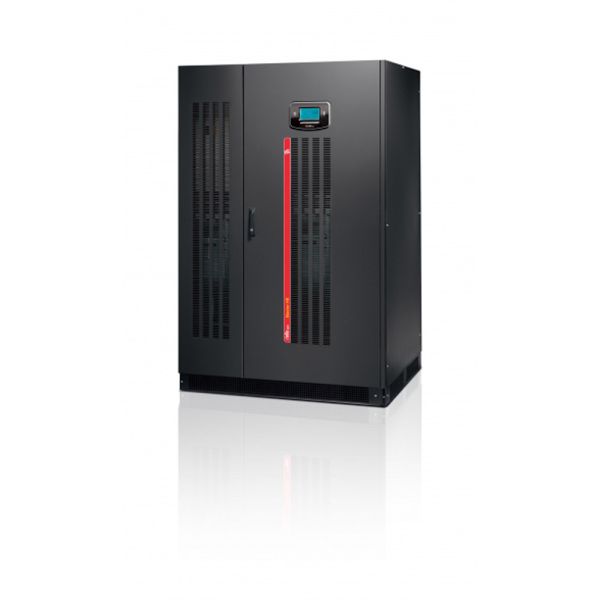

Riello Master HP (MHT 200) 200kVA Online UPS

SKU: MHT200

kVA: 200kVA

Watts: 180000

  • Three-phase input, three-phase output
  • 95.5% online efficiency decreases energy waste
  • Efficiency Control Mode optimises efficiency in parallel installations
  • Parallel up to 8 (distributed) or 7 (centralised) for extra capacity or redundancy
  • Step Up/Step Down converter reduces ripple current
  • Ensures galvanic isolation
  • Battery care system ensures maximum battery lifespan
  • Double RS232 / Dry contacts / 2 slots for communications interface
  • 3-year warranty

Call Us: 0800 080 3118 REQUEST FURTHER DETAILS

Riello's Master HP (MHT) series is a three-phase UPS designed for applications that require great energy efficiency and power availability. Data centres and other mission-critical settings, such as industrial environments, telecommunications networks, and sensitive electro-medical devices, benefit from MHT's maximum protection and power quality. MHT allows for multi-megawatt deployments by allowing for up to eight (distributed parallel) or seven (centralised parallel) UPS systems. You can add UPS without transferring to bypass with Hot System Expansion.

The UPS is equipped with an IGBT-based rectifier, DSP (Digital Signal Processor) technology, and true-line, double-conversion power protection (VFI SS 11 - Voltage and Frequency Independent in accordance with IEC EN 62040-3). The output isolation transformer in the MHT ensures complete galvanic isolation between the load and the DC battery power supply, and it delivers up to 95.5% efficiency in online mode, which is similar to many transformer-free solutions.

Please Note: All images are for illustrative purposes only

Manufacturer: Riello
Color: Anthracite
Topology: Online Double-Conversion
VA: 200000
Watt: 180000
Output Voltage: 380-415V
Input Frequency: 50/60 Hz autoselect
Output Frequency: 50/60Hz +/–0.1 % (autosensing)
Communications Ports: UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
Operating Temperature: 0 to 40°C
Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU

All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times.
