SKU: MHE100

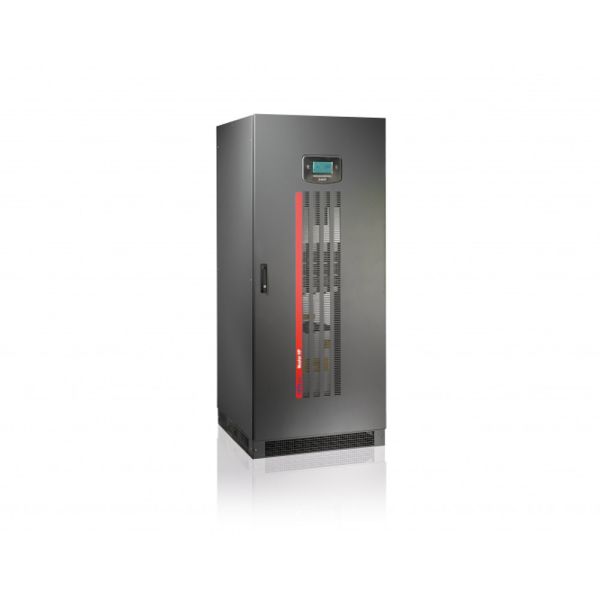

Riello Master HE (MHE 100) 100kVA Online UPS - Extra High Efficiency
SKU: MHE100
kVA: 100kVA
Watts: 100000
Riello's Master HE (MHE) series is a three-phase UPS designed for applications that require great energy efficiency and power availability. Data centres, electro-medical devices, telecom networks, and security systems all benefit from MHE's optimum protection and power quality. It can also be used with or without a neutral wire. In online mode, MHE provides high-quality unity power (kW = kVA) and up to 96.5% efficiency. Generators or MV/LV transformers can be used to power these systems. Multiple UPS units can be connected in parallel to increase capacity (8 units in parallel redundant N+1 or 7 units in a centralised system with a static bypass cabinet) (MSB). The UPS is equipped with an IGBT-based rectifier, DSP (Digital Signal Processor) technology, and true-line, double-conversion power protection (VFI SS 11-Voltage and Frequency Independent in accordance with IEC EN 62040-3). MHT's inverter circuit includes an output isolation transformer, which ensures complete galvanic isolation between the load and the DC battery power supply. The transformer is housed within the UPS cabinet, so it doesn't take up any more room on the floor. Please Note: All images are for illustrative purposes only
| Manufacturer: | Riello |
| Color: | Anthracite |
| Topology: | Online Double-Conversion |
| VA: | 100000 |
| Watt: | 100000 |
| Output Voltage: | 380-415V |
| Input Frequency: | 50/60 Hz autoselect |
| Output Frequency: | 50/60Hz +/–0.1 % (autosensing) |
| Communications Ports: | UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays |
| Operating Temperature: | 0 to 40°C |
| Certification: | IEC/EN 62040-1, IEC/EN 62040-2, CE, IEC/EN 62040-3, RoHS compliant, L V 2014/35/EU, EMC 2014/30/EU |
