SKU: ELP650IEC

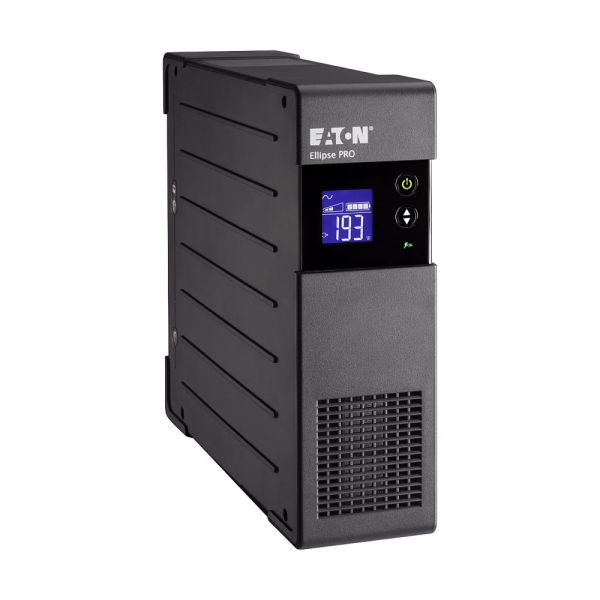

Eaton (ELP650IEC) Ellipse PRO 0.65kVA Line Interactive UPS

SKU: ELP650IEC

kVA: 0.65kVA

Watts: 400

  • Up to 4 devices protected
  • 5 minutes runtime at 80% load
  • Line interactive topology
  • Automatic Voltage Regulation (AVR)
  • Protects data connections such as Ethernet, internet & telephone lines
  • Extra flat & versatile design
  • Straightforward plug & play installation
  • User replaceable batteries
  • Circuit breaker reset button
  • Output: (3) C13 surge & backup, (1) C13 surge only
  • 3-year warranty including batteries

Call Us: 0800 080 3118 REQUEST FURTHER DETAILS

The Eaton Ellipse PRO 650–1600VA line interactive UPS was designed primarily to safeguard workstations running demanding workloads. The LCD display on the Ellipse PRO provides clear information on UPS status and measurements, as well as simple programming of UPS parameters.

EcoControl automatically shuts peripherals when the master device is turned off, thereby reducing energy use by up to 20%. The ultra-flat shape facilitates installation in any workplace setting: Vertical box format, below the desk, horizontally under a monitor, 19" rack-mounted (optional 2U kit), and wall-mounted installation options are available (optional kit).

Manufacturer: Eaton
Color: Black
Topology: Line Interactive
VA: 650
Watt: 400
C14: 1
C13: 3, x 1 (Surge only)
Output Voltage: 220V/230V/240V
Input Frequency: 50/60 Hz autoselect
Output Frequency: 50/60Hz +/–0.1 % (autosensing)
Communications Ports: HID-compliant USB port for automatic integration with most common operating systems (Windows XP / Vista and 7 / Linux / Mac OS X) cable supplied
Operating Temperature: 0–35°C
Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE, CB
