SKU: 9PX11KIBP

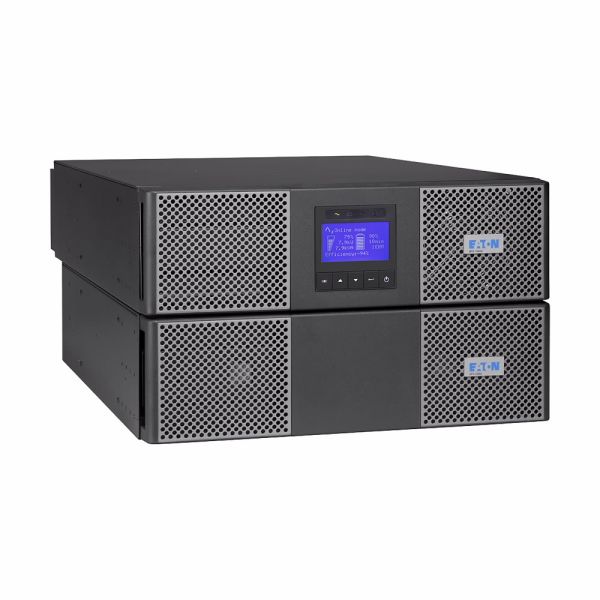

Eaton (9PX11KIBP) 9PX 11kVA Online UPS

SKU: 9PX11KIBP

kVA: 11kVA

Watts: 10000

  • Runtime at 70% load: UPS only 6m / 1 EBM 17m / 2 EBMs 28m / 3 EBMs 42m / 4 EBMs 54m / 5 EBMs 68m / 6 EBMs 82 / 7 EBMs 96m / 8 EBMs 109m / 9 EBMs 123m / 10 EBMs 136m / 11 EBMs 149m
  • Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
  • Internal bypass allows service continuity in case of internal fault
  • 0.9 power factor delivers 28% more power than other UPSs in its class
  • Versatile 6U rack/tower format (rack-mounting kit sold separately)
  • Innovative graphical LCD display brings all operating information at first sight
  • Load segment control enables prioritised shutdowns of non-essential equipment during outages
  • Parallel operation using HotSync technology
  • Eaton ABM battery management technology
  • Hot-swappable internal batteries
  • External hot-swappable battery modules can be added for longer power availability
  • Maintenance Bypass
  • (1) USB port, (1) RS232 serial port (USB & RS232 ports cannot be used simultaneously), (4) dry contacts (DB9), (1) mini terminal block for remote On/Off & (1) for remote power Off, (1) DB15 for parallel operation
  • (1) slot for Network-M2, Network-MS, ModBus-MS or Relay-MS management cards
  • Input: Terminal block (single-phase)
  • Output: Terminal block + (4) IEC C19 (16 A)
  • 2-year warranty on electronics & batteries

Call Us: 0800 080 3118 REQUEST FURTHER DETAILS

The Eaton 9PX UPS series delivers energy-efficient power protection for small-to-medium-sized data centres, IT rooms, and critical infrastructure. IT and facilities managers who are worried about energy costs and looking for next-generation power protection solutions will find the 9PX to be a great choice. It offers online double-conversion protection while using 40% less energy, making it a great choice for both groups.

Using HotSync technology, the 9PX (5-11kVA) may be paralleled to generate twice the power of a unitary product at no additional expense.

Energy Star certified, the Eaton 9PX offers the best level of energy and cooling expense savings. 9PX can measure energy consumption down to the outlet group level. Monitor kWh numbers using the LCD or Eaton's Intelligent Power Software.

With an optional network card and Eaton's Intelligent Power Software Suite, which works with all major operating systems, the 9PX works well with leading virtualization environments and cloud orchestration platforms.

Manufacturer: Eaton
Color: Black
Topology: Online Double-Conversion
VA: 11000
Watt: 10000
C19: 4
Output Voltage: 200/208/220/230/240V
Input Frequency: 40-70Hz
Output Frequency: 40-70 Hz + 50/60 Hz autoselection + frequency converter as standard
Communications Ports: 1 USB port + 1 RS232 serial port (cannot be used simultaneously) + 4 dry contacts (DB9) + 1 mini terminal block for remote On/Off and 1 for remote power Off + 1 DB15 for parallel
Operating Temperature: 0 to 40°C
Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB, CSA 22.2, CISPR22 Class B, FCC Class A, IEC/EN 62040-3 (Performance)

All UPS solutions require proactive maintenance to not only guarantee the lifespan of the backup power system but to also ensure that it is in optimal operational condition at all times.

Secure Power offers a comprehensive range of UPS maintenance services and our team of nationwide engineers are available 24/7, 365 days a year to carry out all routine and emergency works. We have a range of standard UPS maintenance contract packages and also provide tailored solutions to fit any requirement.

Below is a snapshot of what our contracts offer.

Service Bronze Silver Gold Platinum
Response time Next Business Day Next Business Day 8hrs 4hrs
Discounted travel and labour costs N/A N/A N/A
24/7 Technical support
Temporary UPS in the event of a failure (up to 10kVA single phase)
1 preventative maintenance visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Discounted parts - -
Access to UK wide spares network - -
Response Time Next business day
Discount travel & labour costs
24/7 Technical support
Temporary UPS in the event of a failure (up to 10kVA single phase)
1 preventative visit per year -
Travel & labour costs for reactive maintenance -
Professional service report -
Emergency callout number -
Discounted parts -
Access to UK wide spares network -
Response Time Next business day
Discount travel & labour costs N/A
24/7 Technical support
Temporary UPS in the event of a failure (up to 10kVA single phase)
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Discounted parts -
Access to UK wide spares network -
Response Time 8hrs
Discount travel & labour costs N/A
24/7 Technical support
Temporary UPS in the event of a failure (up to 10kVA single phase)
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Discounted parts
Access to UK wide spares network
Response Time 4hrs
Discount travel & labour costs N/A
24/7 Technical support
Temporary UPS in the event of a failure (up to 10kVA single phase)
1 preventative visit per year
Travel & labour costs for reactive maintenance
Professional service report
Emergency callout number
Discounted parts
Access to UK wide spares network
